Modelli	Portata (L/min)	Portata (US Gpm)	Regime di rotazione (rpm)	Pressione (MPa)	Pressione (bar)	Pressione (psi)	Potenza (kW)	Tensione (V)	Corrente (A)	Dimensioni d'ingombro L x l x h (mm)	Peso (kg)	Note
M51012F	1	0.26	1450	10	100	1450	0.55	230	2.6	210x453,5x188	14.4		Entra
M51022F	2	0.52	1450	10	100	1450	0.8	230	3.8	210x453,5x188	15.5		Entra
M51042F	4	1.06	1450	10	100	1450	1.15	230	5.5	220x471x196	17.1		Entra
M51062F	6	1.58	1450	9	90	1300	1.7	230	8.2	220x471x196	18.7		Entra
M51012	1	0.26	1450	10	100	1450	0.55	230	2.6	210x363,5x188	13.5		Entra
M51022	2	0.52	1450	10	100	1450	0.8	230	3.8	210x363,5x188	14.6		Entra
M51042	4	1.06	1450	10	100	1450	1.15	230	5.5	220x408x196	16.1		Entra
M51062	6	1.58	1450	9	90	1300	1.7	230	8.2	220x408x196	17.7		Entra
M51082	8	2.11	1450	7	70	1015	1.7	230	8.2	220x408x196	18		Entra
QUIKY-HU 1/70 EU	1	0.26	1450	7	70	1000	0.58	230	2.8	365x235xh240	20	50 Hz	Entra
QUIKY-HU 2/70 EU	2	0.53	1450	7	70	1000	0.66	230	3.2	365x235xh240	20	50 Hz	Entra
QUIKY-HU 4/70 EU	4	1.05	1450	7	70	1000	0.82	230	4	365x235xh240	20	50 Hz	Entra
QUIKY-HU 8/70 EU	8	2.11	1450	7	70	1000	1.35	230	6.5	365x235xh240	20	50 Hz	Entra
QUIKY-HU 2/70 US	2	0.53	1750	7	70	1000	1.02	115	9.6	365x235xh240	20	60 Hz	Entra
QUIKY-HU 4/70 US	4	1.05	1750	7	70	1000	1.12	115	10.8	365x235xh240	20	60 Hz	Entra
QUIKY-HU 8/70 US	8	2.11	1750	7	70	1000	1.44	115	13.8	365x235xh240	20	60 Hz	Entra

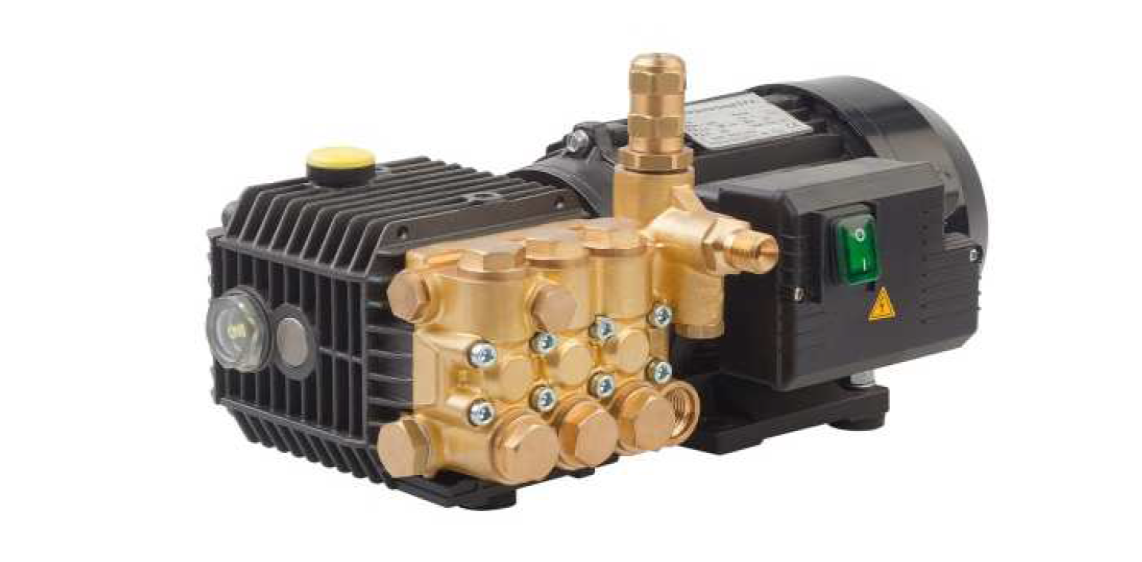

Serie MISTING
