Models	Flow (L/min)	Flow (US Gpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	MAX Pressure (MPa)	MAX Pressure (bar)	MAX Pressure (psi)	Jet reaction thrust (N)	Single-phase motor power (kW)	Single-phase motor power (V)	Single-phase motor power (Hz)	Single-phase motor power (A)	Overall dimensions L x l x h (mm)	Weight (kg)
BT 22	7	1.8	9	90	1300	12	120	1750	< 20	1.75	230	50	7.5	230x290x515	11.8	Enter
BT 24	7	1.8	9	90	1300	12	120	1750	< 20	1.75	240	50	7.5	230x290x515	11.8	Enter
BT 10	7	1.8	8	80	1160	11	110	1600	< 20	1.6	100	60	15	230x290x515	11.8	Enter
BT 11	7	1.8	9	90	1300	12	120	1750	< 20	1.75	120	60	15	230x290x515	11.8	Enter
BT 26	7	1.8	9	90	1300	12	120	1750	< 20	1.75	208 ÷ 230	60	7.5	230x290x515	11.8	Enter

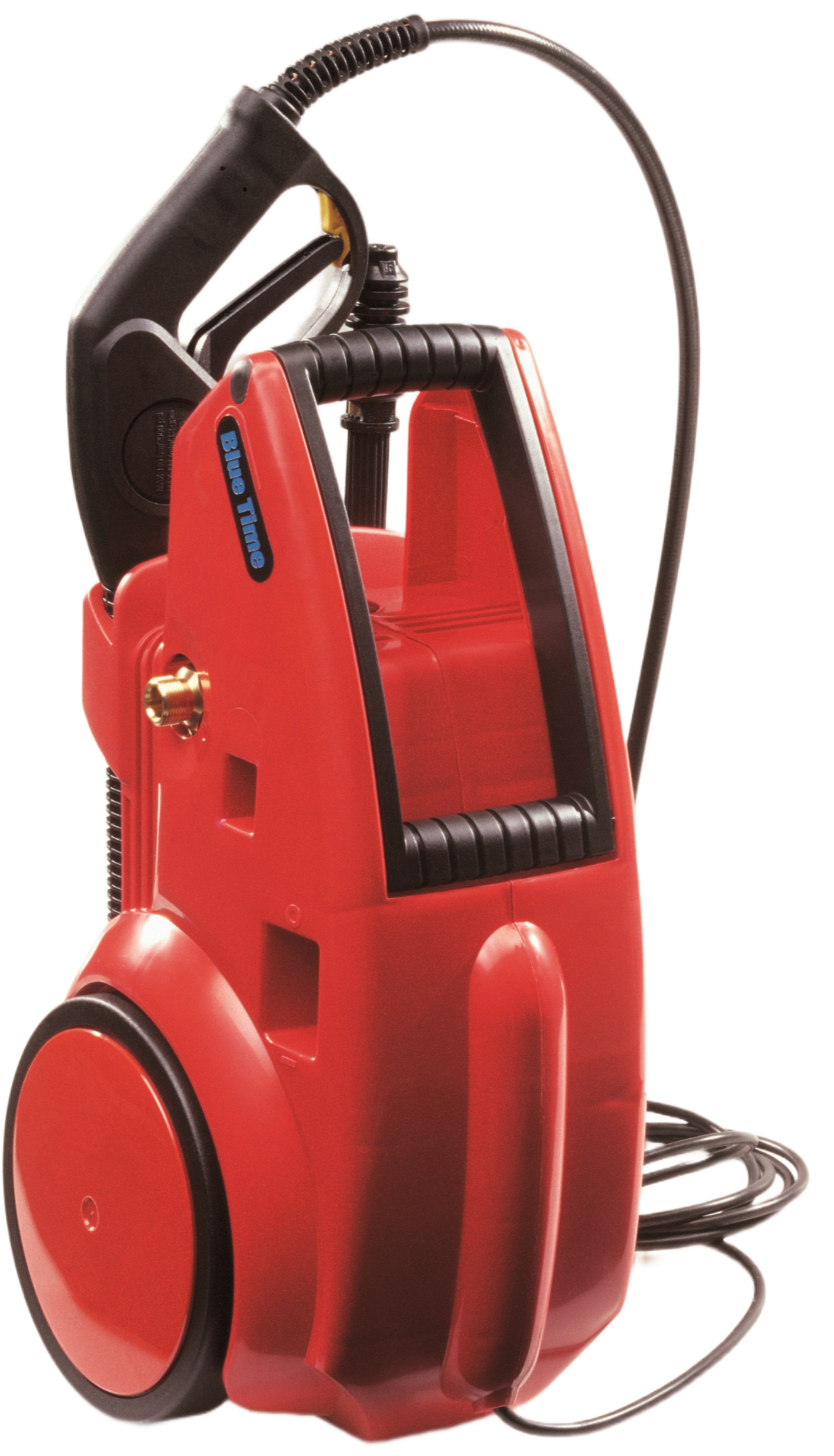

BLUETIME

Documenti tecnici
