Models	Flow (L/min)	Flow (US Gpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	MAX Pressure (MPa)	MAX Pressure (bar)	MAX Pressure (psi)	Jet reaction thrust (N)	Single-phase motor power (kW)	Single-phase motor power (V)	Single-phase motor power (Hz)	Single-phase motor power (A)	Overall dimensions L x l x h (mm)	Weight (kg)
BIG BANG F122	7	1.8	9	90	1300	12	120	750	< 20	1.58	230	50	7.6	460x260x250	14,5 ÷ 15,5	Enter
BIG BANG F124	7	1.8	9	90	1300	12	120	1750	< 20	1.58	240	50	7	460x260x250	14,5 ÷ 15,5	Enter
BIG BANG X220S	8	2.11	7	70	1000	10	100	1450	< 20	1.58	230	50	7.6	460x260x250	14,5 ÷ 15,5	Enter
BIG BANG X240S	8	2.11	7	70	1000	10	100	1450	< 20	1.58	240	50	7	460x260x250	14,5 ÷ 15,5	Enter
BIG BANG X117S	8.1	2.1	7	70	1000	10	100	1450	< 20	1.53	115	60	12	460x260x250	14,5 ÷ 15,5	Enter
BIG BANG X161	8	2.11	6.5	65	940	10	100	1450	< 20	1.4	100	60	15	460x260x250	14,5 ÷ 15,5	Enter
BIG BANG X230	8	2.11	7	70	1000	10	100	1450	< 20	1.68	230	60	7.8	460x260x250	14,5 ÷ 15,5	Enter

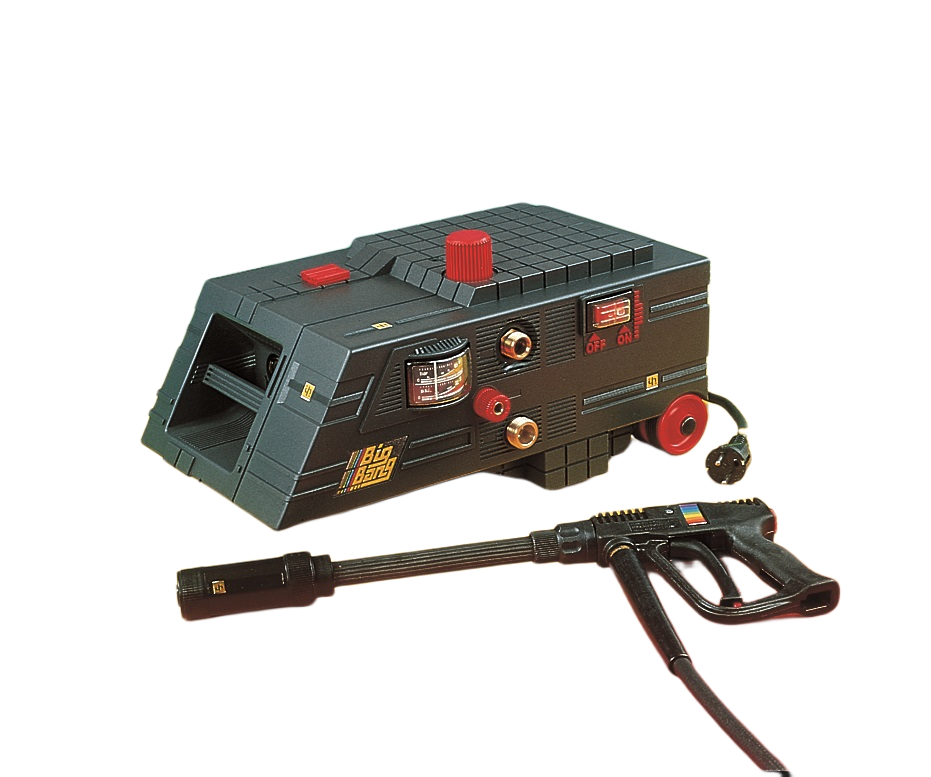

BIG BANG

Documenti tecnici
