Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
W4015	15	3.96	1450	40	400	5800	15	11.02	351,5x242,5x195,5	19.5	Enter
W5015	15	3.96	1450	50	500	7250	20	14.7	351,5x242,5x195,5	19.5	Enter
W3018	17.6	4.64	1450	30	300	4350	14	10.43	340,5x242,5x189,5	18.5	Enter
W4018	18	4.75	1450	40	400	5800	20	14.7	351,5x242,5x195,5	19.5	Enter
W4518	18	4.75	1450	45	450	6525	21	15.44	351,5x242,5x195,5	19.5	Enter
W5018	18	4.75	1450	50	500	7250	24	17.4	351,5x242,5x195,5	19.5	Enter
W3021	21	5.54	1450	30	300	4350	16	11.76	340,5x242,5x189,5	18.5	Enter
W3521	21	5.55	1450	35	350	5075	20	14.7	351,5x242,5x195,5	19.5	Enter
W4021	21	5.55	1450	40	400	5800	22	16.17	351,5x242,5x195,5	19.5	Enter
WK5021	21	5.55	1450	50	500	7250	28	20.59	350x243x187,5	21.5	Enter
WK6015	15	3.96	1450	60	600	8700	23.5	16.92	350x243x187,5	21.5	Enter
W3523	23	6.07	1450	35	350	5075	20	14.7	351,5x242,5x195,5	19.5	Enter
W3535	35	9.25	1450	35	350	5075	31.5	23.16	351,5x242,5x195,5	19.5	Enter
W2525	25	6.6	1450	25	250	3600	18	13.23	340,5x242,5x189,5	18.5	Enter
W3025	25	6.6	1450	30	300	4350	20	14.7	340,5x242,5x189,5	18.5	Enter
W2030	30	7.92	1450	20	200	2900	15	11.02	340,5x242,5x189,5	18.5	Enter
W2035	35	9.25	1450	20	200	2900	18	13.23	340,5x242,5x189,5	18.5	Enter
W2141	41	10.83	1450	21	210	3045	22	16.17	340,5x242,5x189,5	18.5	Enter
W1550	50	13.2	1450	15	150	2175	20	14.7	340,5x242,5x189,5	18.5	Enter
W1555	55	14.5	1450	15	150	2175	22	16.17	340,5x242,5x189,5	18.5	Enter
W1755	55	14.5	1450	17.2	172	2500	24.5	18	340,5x242,5x189,5	18.5	Enter
W1570	70	18.5	1450	15	150	2175	27	19.85	345,5x242,5x199,5	22.3	Enter
WG1570	70	18.5	1450	15	150	2175	27	19.85	345x242,5x199,5	21.7	Enter
T5015	15	3.96	1750	50	500	7250	19.5	14.54	351,5x242,5x195,5	19.5	Enter
T4018	18	4.75	1750	40	400	5800	20	14.7	351,5x242,5x195,5	19.5	Enter
T5018	18	4.75	1750	50	500	7250	24	17.64	351,5x242,5x195,5	19.5	Enter
T3021	21	5.55	1750	30	300	4350	16.5	12.3	340,5x242,5x189,5	18.5	Enter
T3025	25	6.6	1750	30	300	4350	20	14.7	340,5x242,5x189,5	18.5	Enter
T2530	30	7.92	1750	25	250	3600	20	14.7	340,5x242,5x189,5	18.5	Enter
T2830	30	7.92	1750	27.5	275	4000	21	15.44	340,5x242,5x189,5	18.5	Enter
T2535	35	9.25	1750	25	250	3600	22	16.17	340,5x242,5x189,5	18.5	Enter
T2040	40	10.56	1750	20	200	2900	21	15.44	340,5x242,5x189,5	18.5	Enter
T1750	50	13.2	1750	17.2	172	2500	22	16.17	340,5x242,5x189,5	18.5	Enter

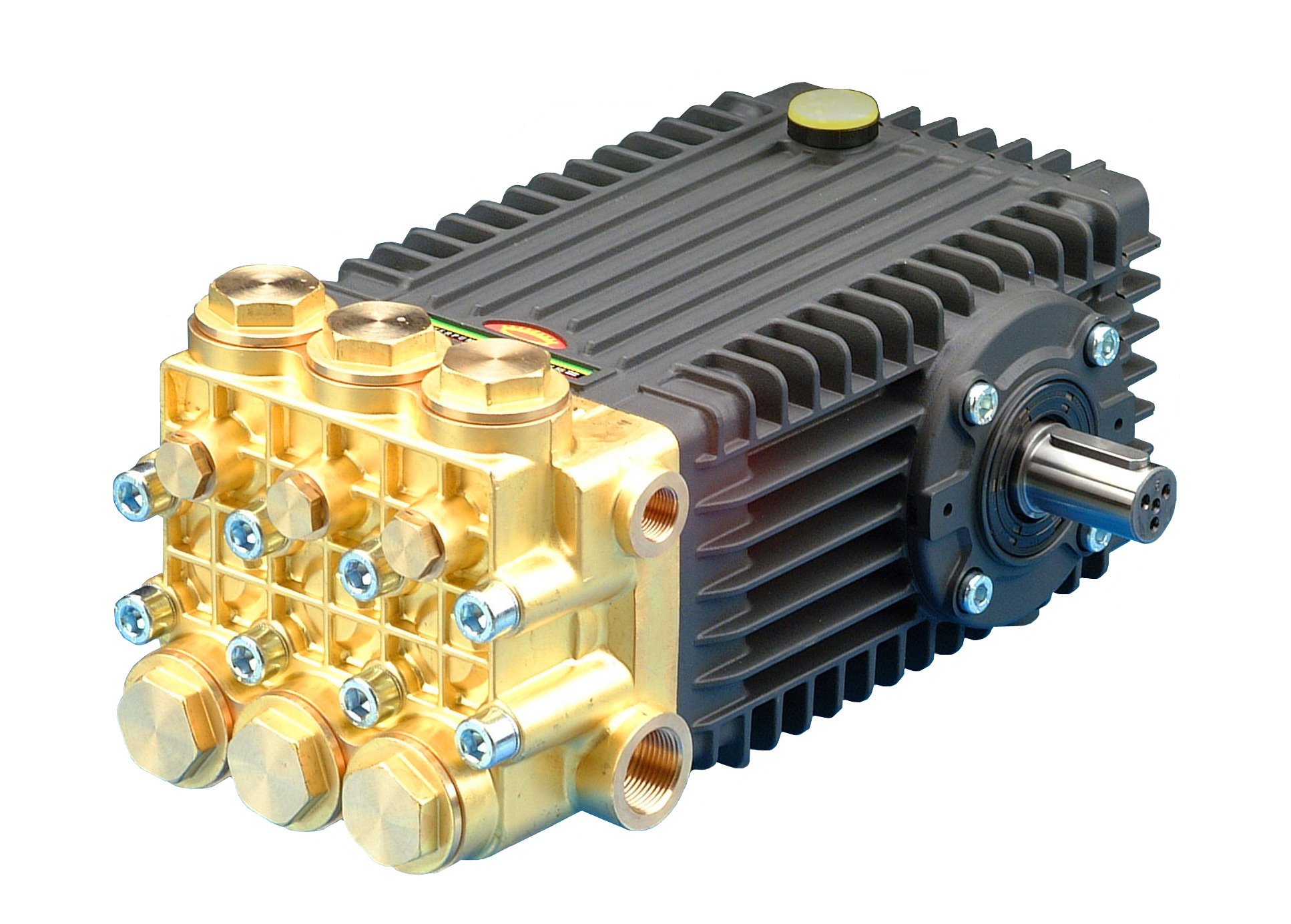

Series 66
