Miscellanous accessories

Documenti tecnici

[documenti_tecnici]

Models	Flow (L/min)	Flow (US Gpm)	Ø Nozzle (mm)	Nozzle Type	Chemical flow rate (grams/min)	Chemical flow rate (oz/min)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	MIN flow (US Gpm)	MAX flow (L/min)	MAX flow (US Gpm)	MIN Pressure (bar)	MIN Pressure (psi)	MAX Pressure (bar)	MAX Pressure (psi)	Switching pressure (bar)	Switching pressure (psi)	Protection grade	MAX voltage (V)	Inductive load (A)	Resistive load (A)	Temperature (°C)	Temperature (°F)	Stroke (mm)	Stroke (in)	Cable lenght (mm)	Cable lenght (in)	Weight (kg)

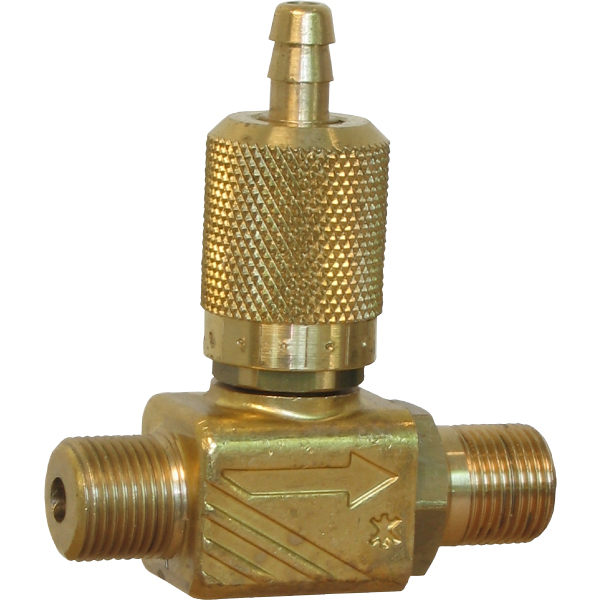

ROBOKIM 0	8 ÷ 11	2,11 ÷ 2,9	3.5	4530	1000	35	0.4	4	58																					Enter
ROBOKIM 1	12 ÷ 15	3,17 ÷ 3,96	3.5	4530	1000 ÷ 2000	35 ÷ 70	0,8 ÷ 1	8 ÷ 10	116 ÷ 145																					Enter
ROBOKIM 2	16 ÷ 21	4,22 ÷ 5,55	3.5	4530	1400 ÷ 1600	49 ÷ 56	0,8 ÷ 1,5	8 ÷ 15	116 ÷ 218																					Enter
ROBOKIM 3	25 ÷ 41	6,6 ÷ 10,83	5	4560	1000 ÷ 2000	42 ÷ 70	0,8 ÷ 1,2	8 ÷ 12	116 ÷ 175																					Enter
SIMPLEX-3													50	725	200	3000	30	435	IP55	250	1	5								Enter
SPEEDMATIC													50	725	200	3000							75	167	0 ÷ 30	0 ÷ 1,18	1000	39.37	0.43	Enter
STOPMATIC										4.75	18	4.75			10	145			IP55	250	1	5	60	140					0.41	Enter
ZRPM1																														Enter
ZIPXAVV																														Enter
ZTXAVV																														Enter
ATTACCO RAPIDO ZIN	40	10.57					21.5	215	3120														140	284						Enter
VARIOPRESS	21	5.55					20	200	3000														80	176						Enter
