Models	Ø engine shaft (mm)	Ø engine shaft (in)	MAX power transmission (hp)	MAX power transmission (kW)	Engine flange	Transmission ratio (i)	Weight without oil (kg)	For pumps

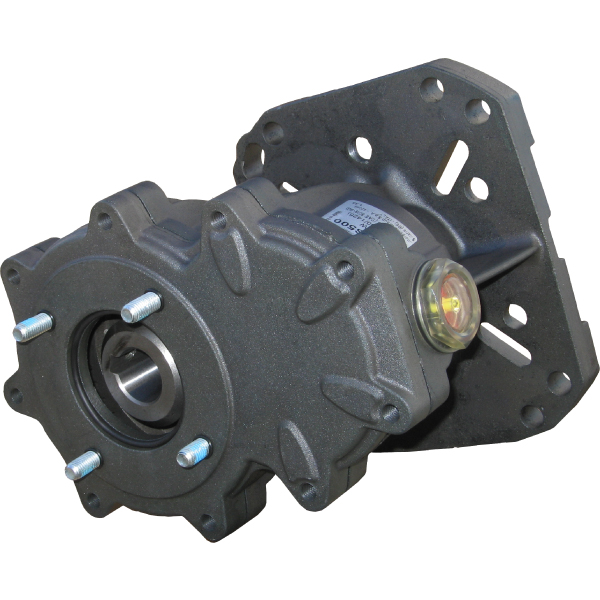

RS500	25,4 / 25 / 28,6	1" / - / 1"1/8	25	18.5	SAE J609-A-B	2.2	4.2	47 - 66 - (vers. 1450 rpm)	Enter
RS500H	25.4	1"	25	18.5	SAE J609-A-B	2.2	4.3	47 - 66 - (vers. 1450 rpm)	Enter
MPTO		1"3/8 ASAE	9.5	7		1.9	4.2	47 - 66 - (vers. 1000 rpm)	Enter
RE44	28		7.5	5.5		2.4	4.1	69 - (vers. 600 rpm)	Enter
RS99	19		5	3.7	SAE J609-A	2.4	2.7	44 - 49 - 50 - 60 - 63 - (vers. 1450 rpm)	Enter

Gear Box - Multipliers
